DIN Valve Fill Station Adapter 4500psi/300bar with 20inches Hose Dual Gauge for Charging Scuba Tank Diving

DIN Valve Fill Station Adapter 4500psi/300bar Dual Gauge Charging Scuba HPA Cylinder Filling Diving

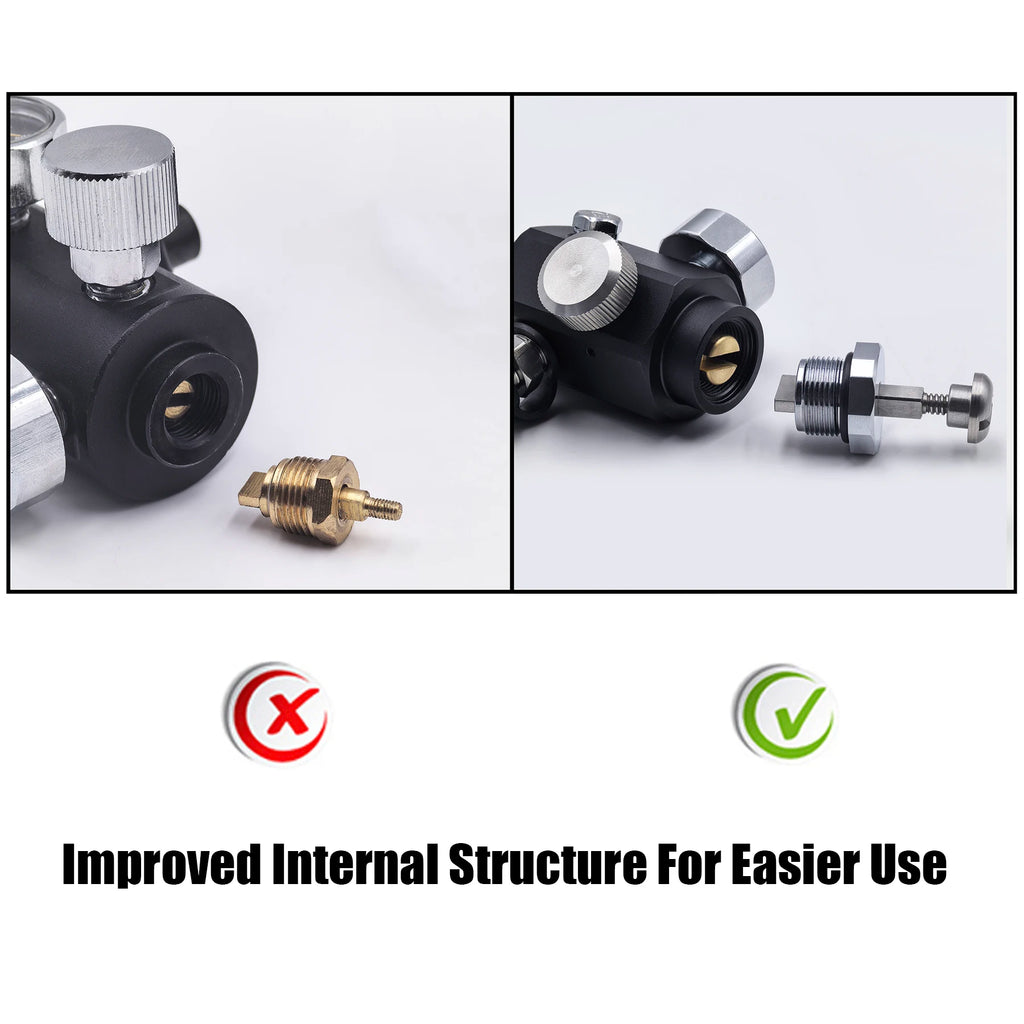

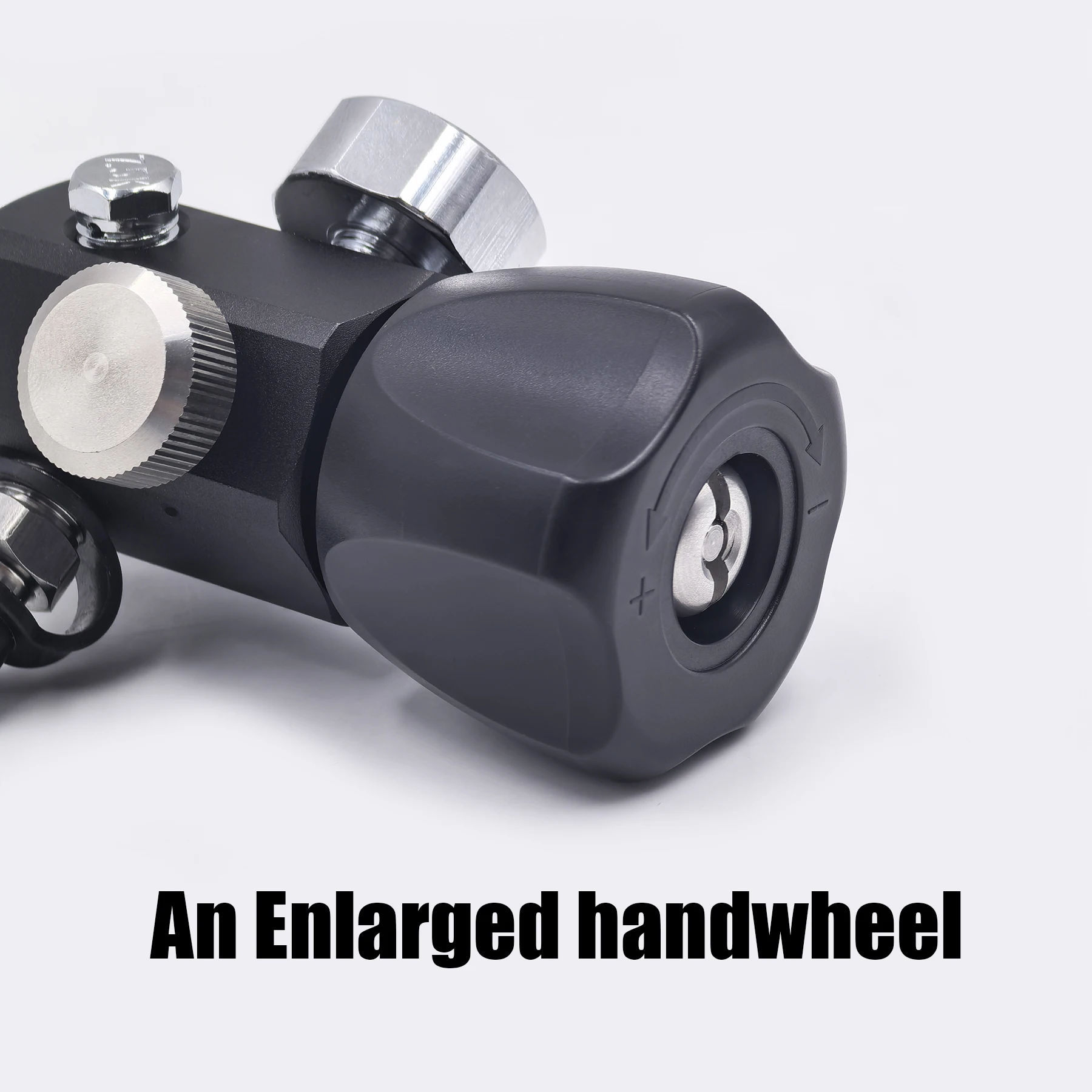

Important improvements ~ Improved the structure of the internal air chamber and the shape of the handwheel, making it easy to operate even under high pressure. All core components have been changed to stainless steel material.

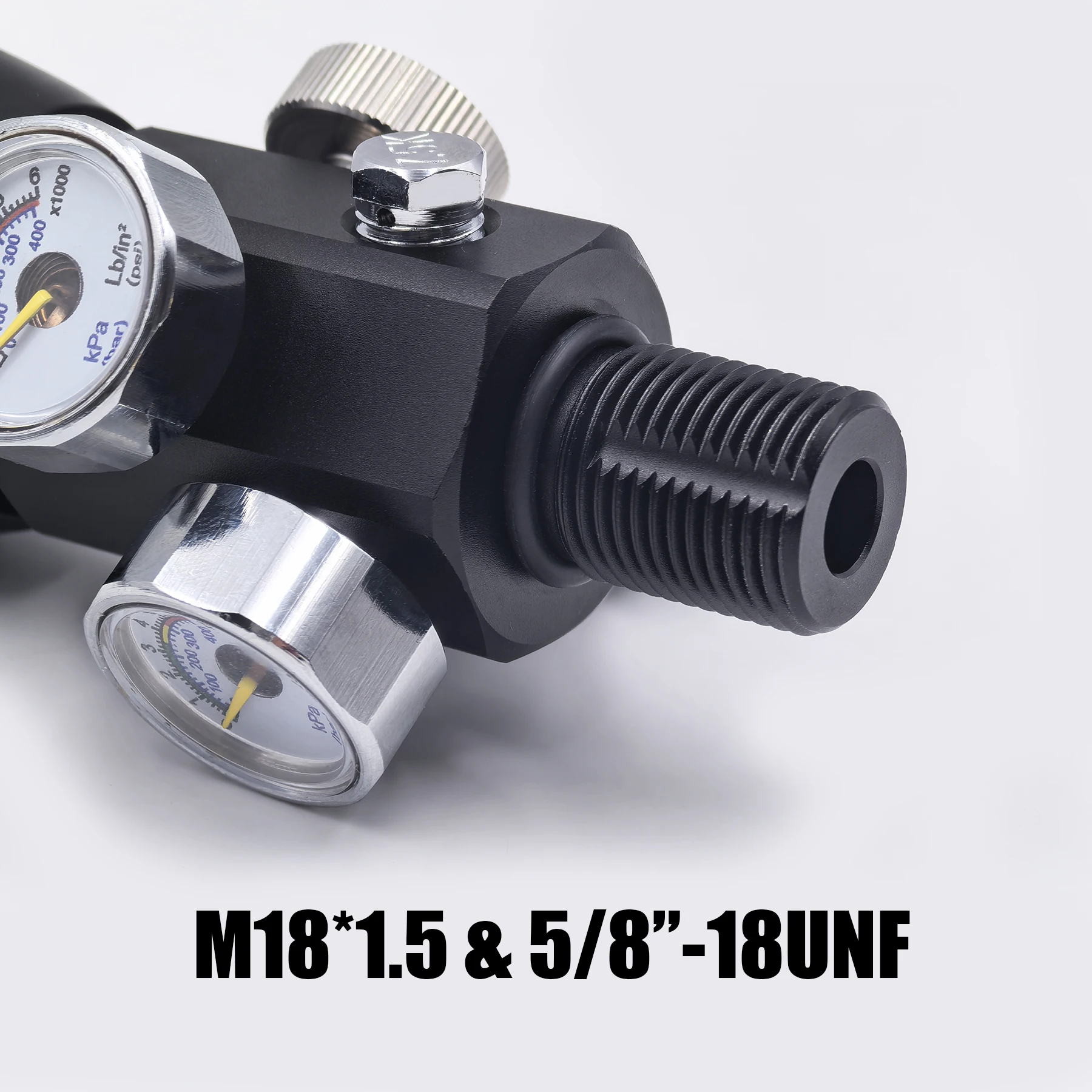

Parameters ~ Max Input pressure: 4500psi/300bar, Input Thread: M18x1.5 or 5/8"-18UNF, Output Adapter: Standard 8mm female quick disconnect

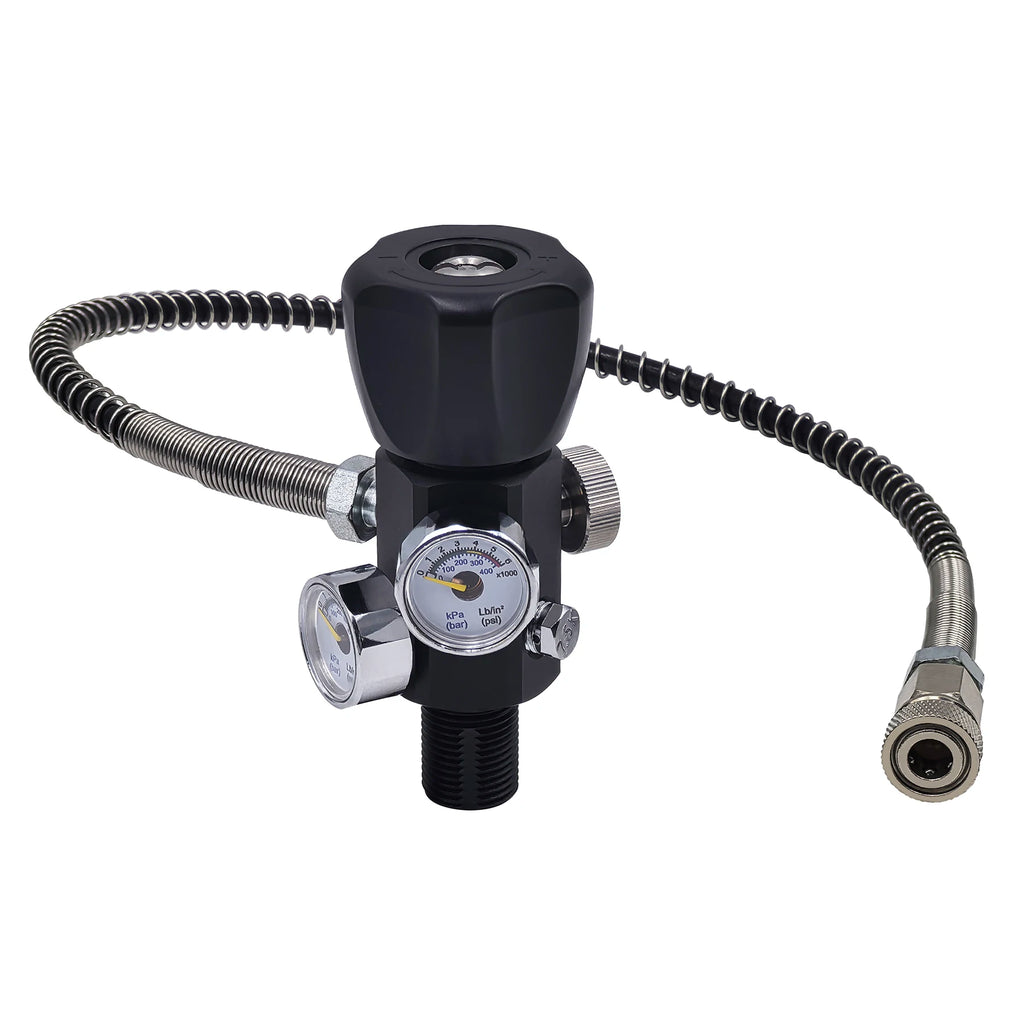

Two gauges design ~ One gauge displays the pressure inside the cylinder, and one gauge displays the output pressure. With 20 inches/50cm high pressure hose with spring protector.

Simple operation ~ Easy to operate, without training, anyone can easily operate it. It can quickly filling and deflate.

Widely used ~ It is can be used in various industries such as diving, mountaineering, firefighting, medical facilities, and mineral mining, household soda water, etc.

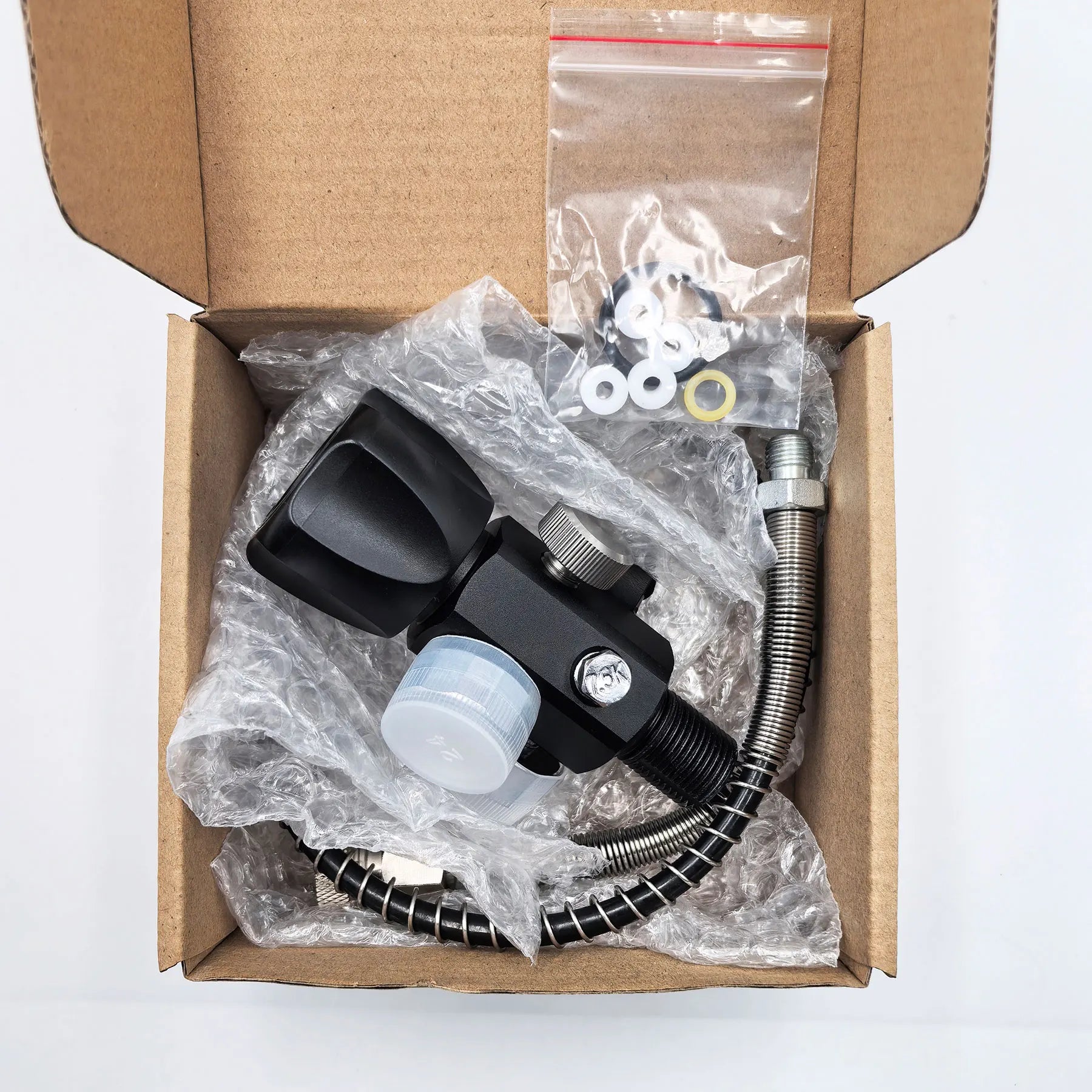

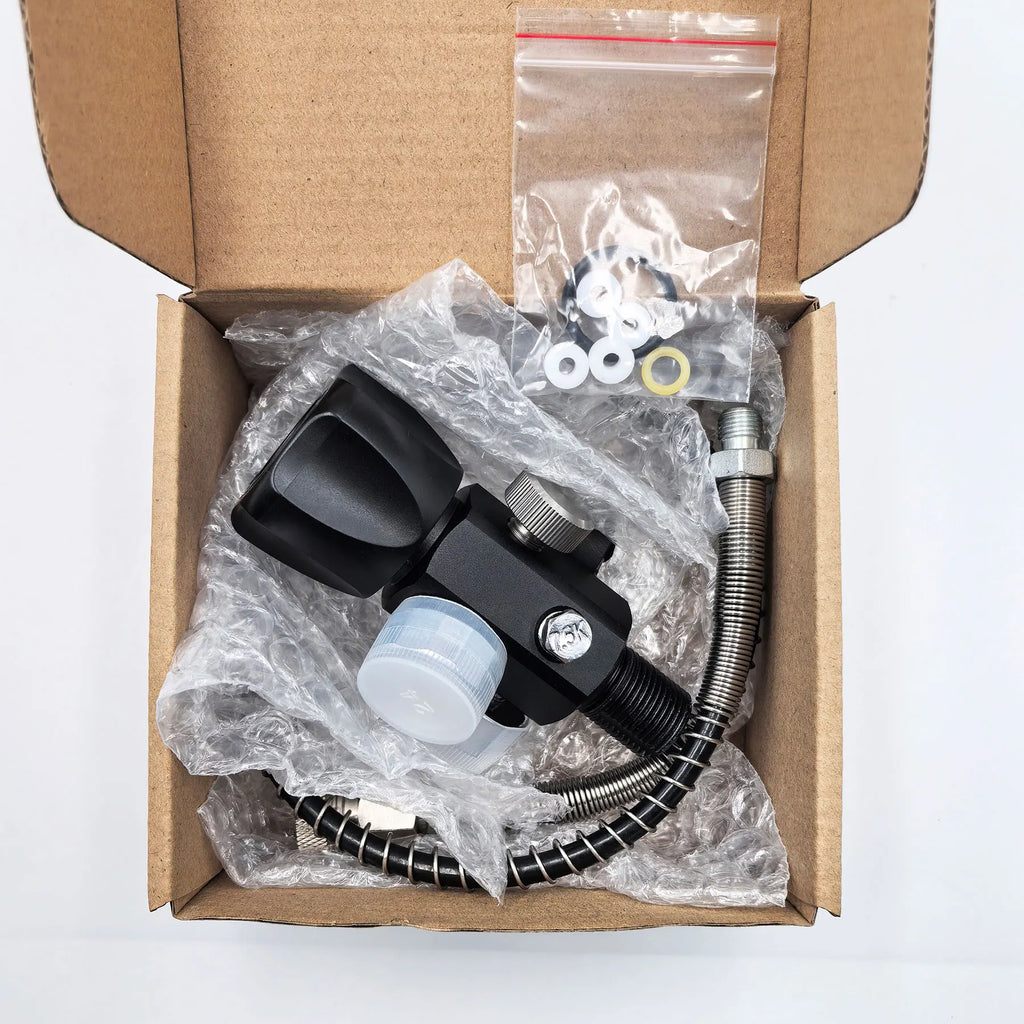

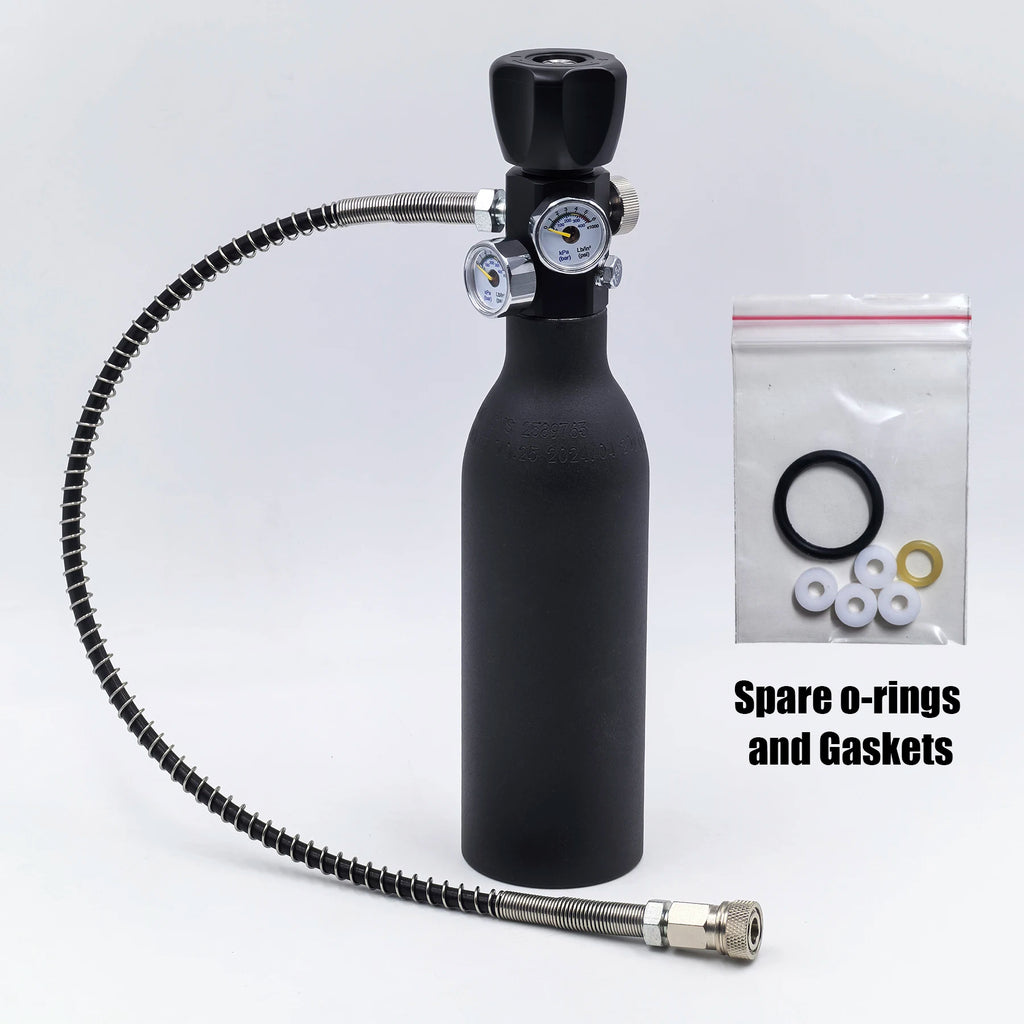

Comes with spare O-ring and gaskets.


Input thread: M8*1.5 or 5/8"-18UNF
Output: 8mm female quick disconnect
Max working pressure: 4500psi/300bar

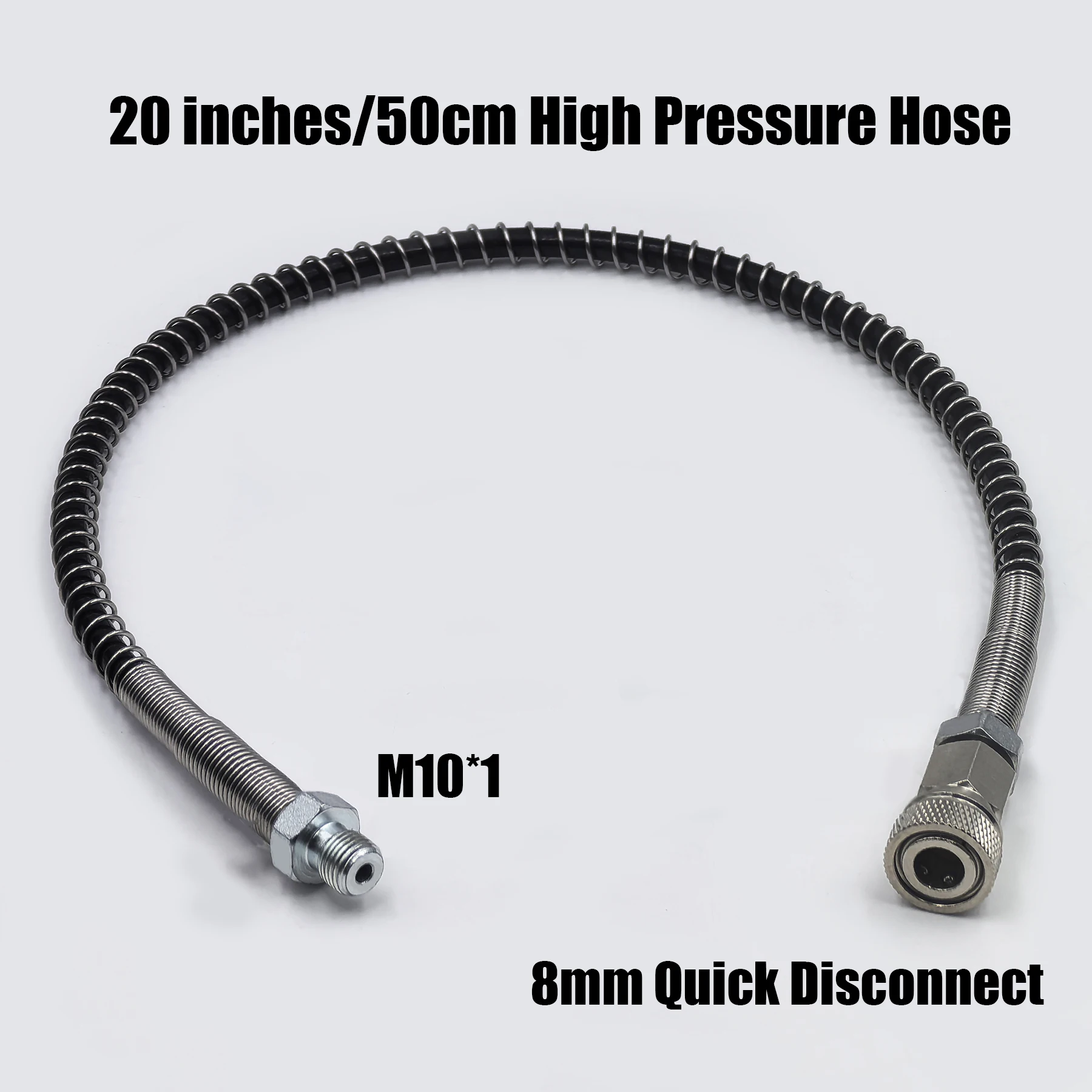

Hose length: 50cm/20inches
Material: Stainless steel and Aluminum alloy

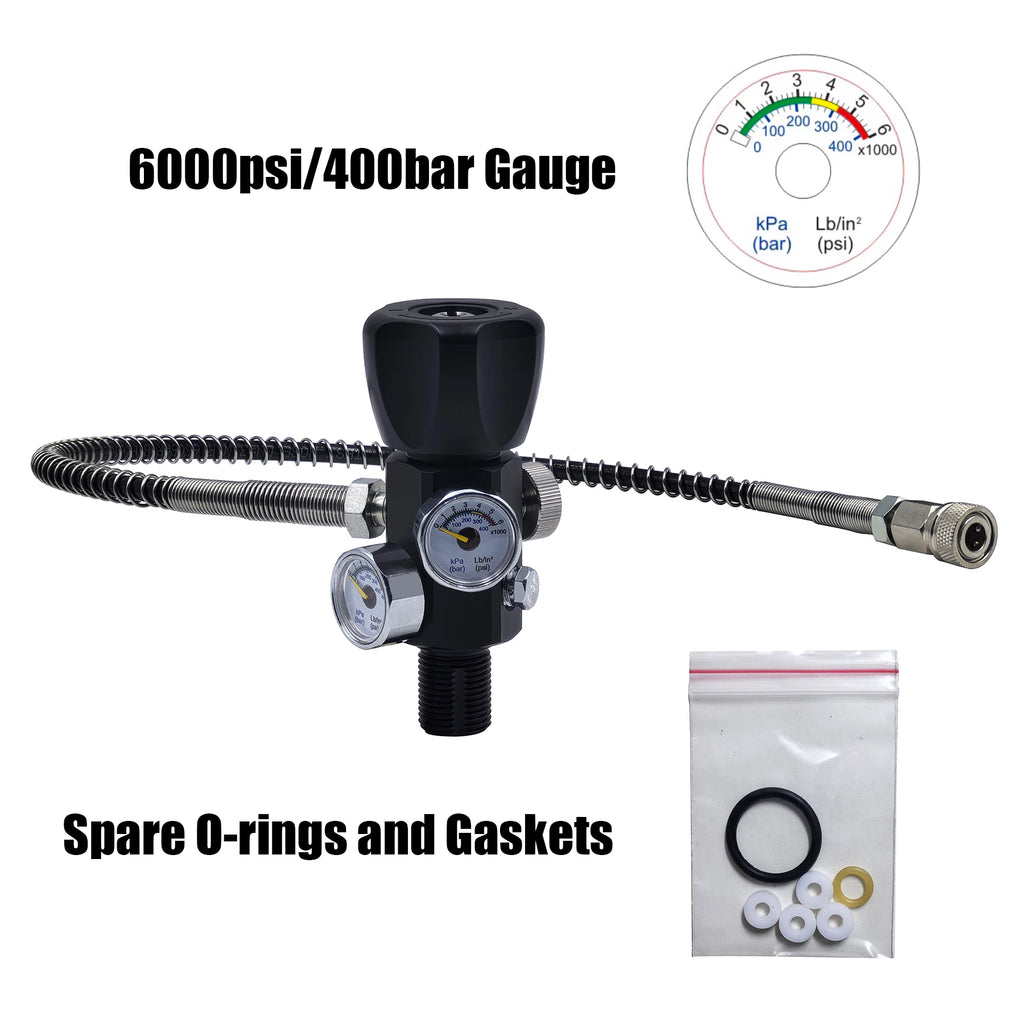

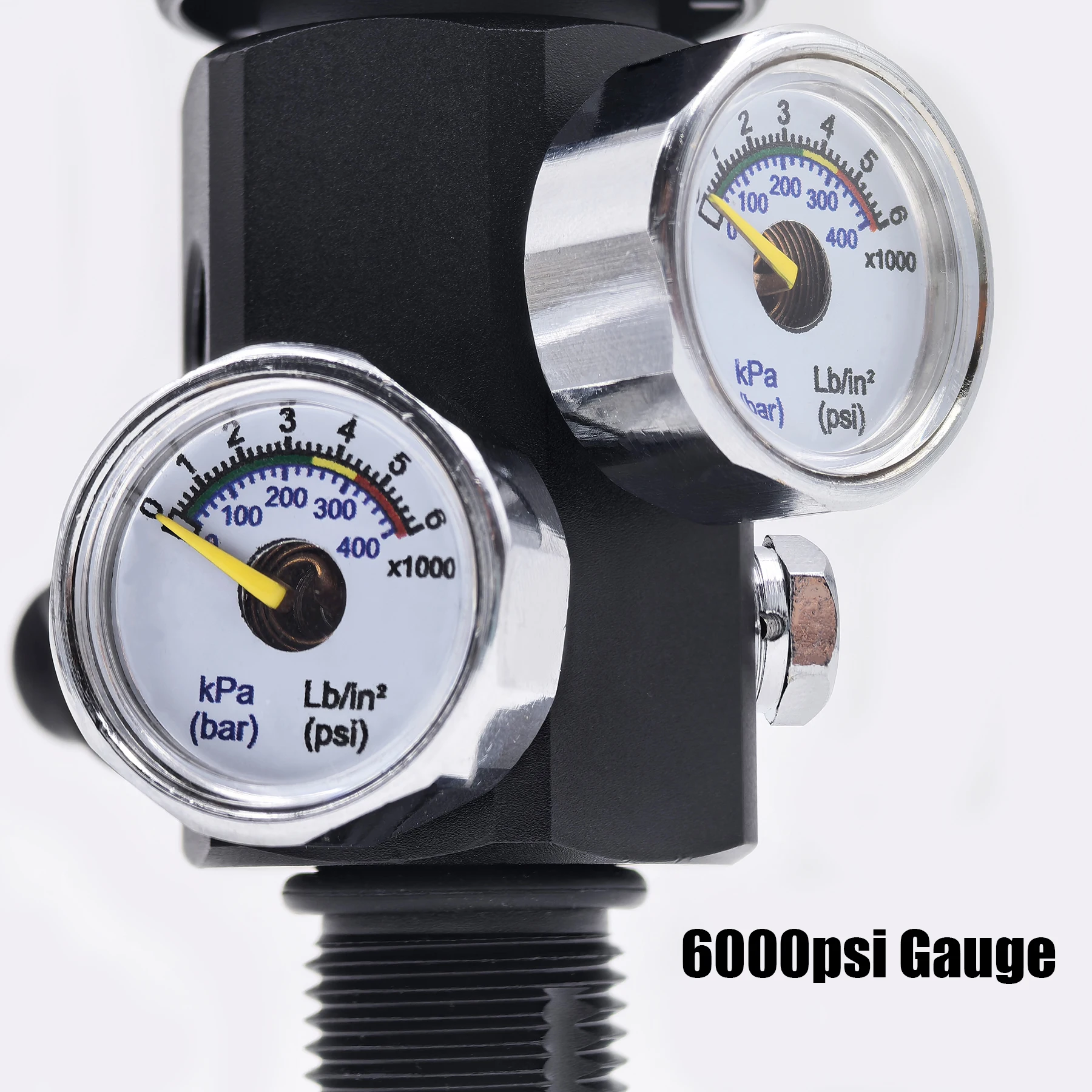

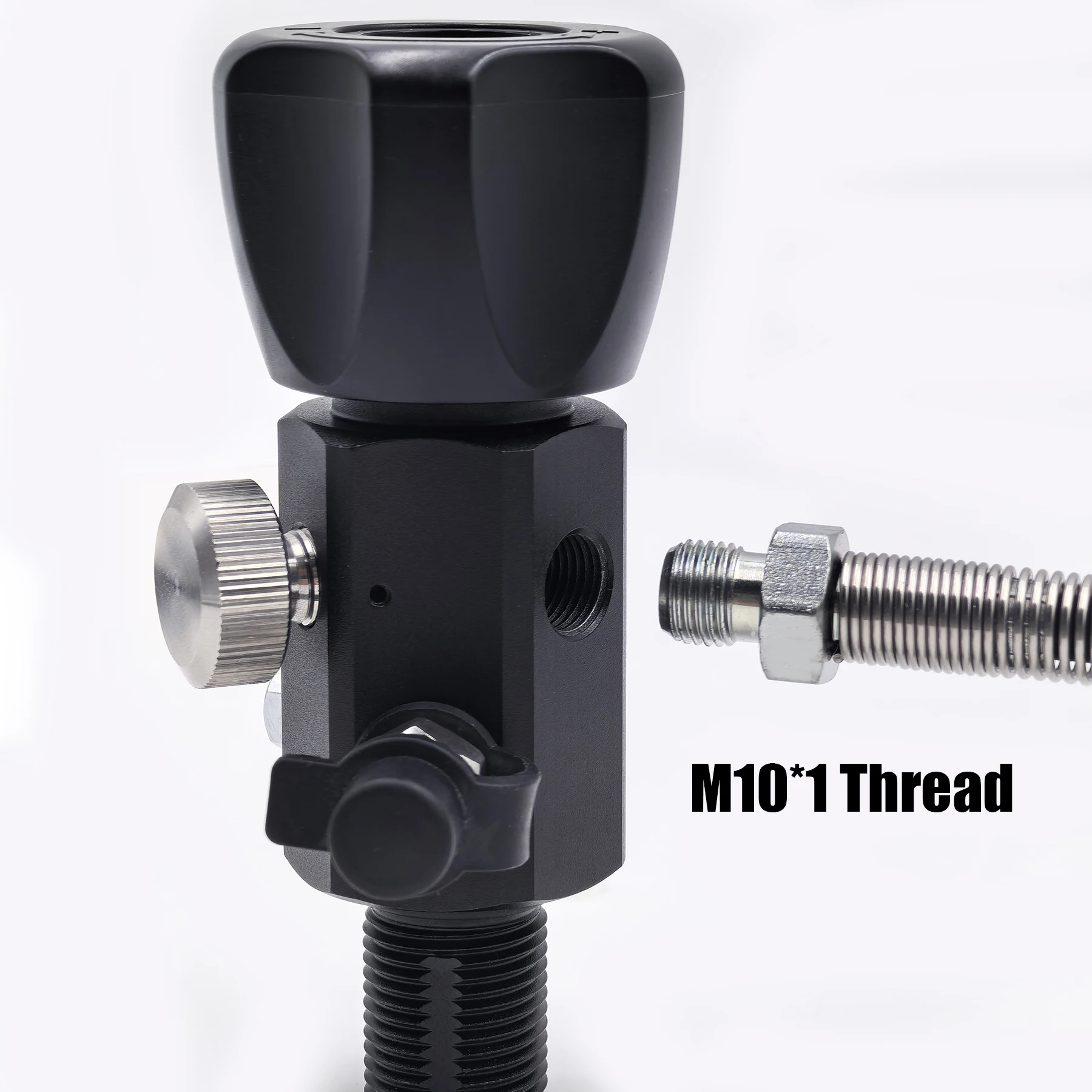

Gauge: M10*1 thread 6000psi/400bar, 1inch dial

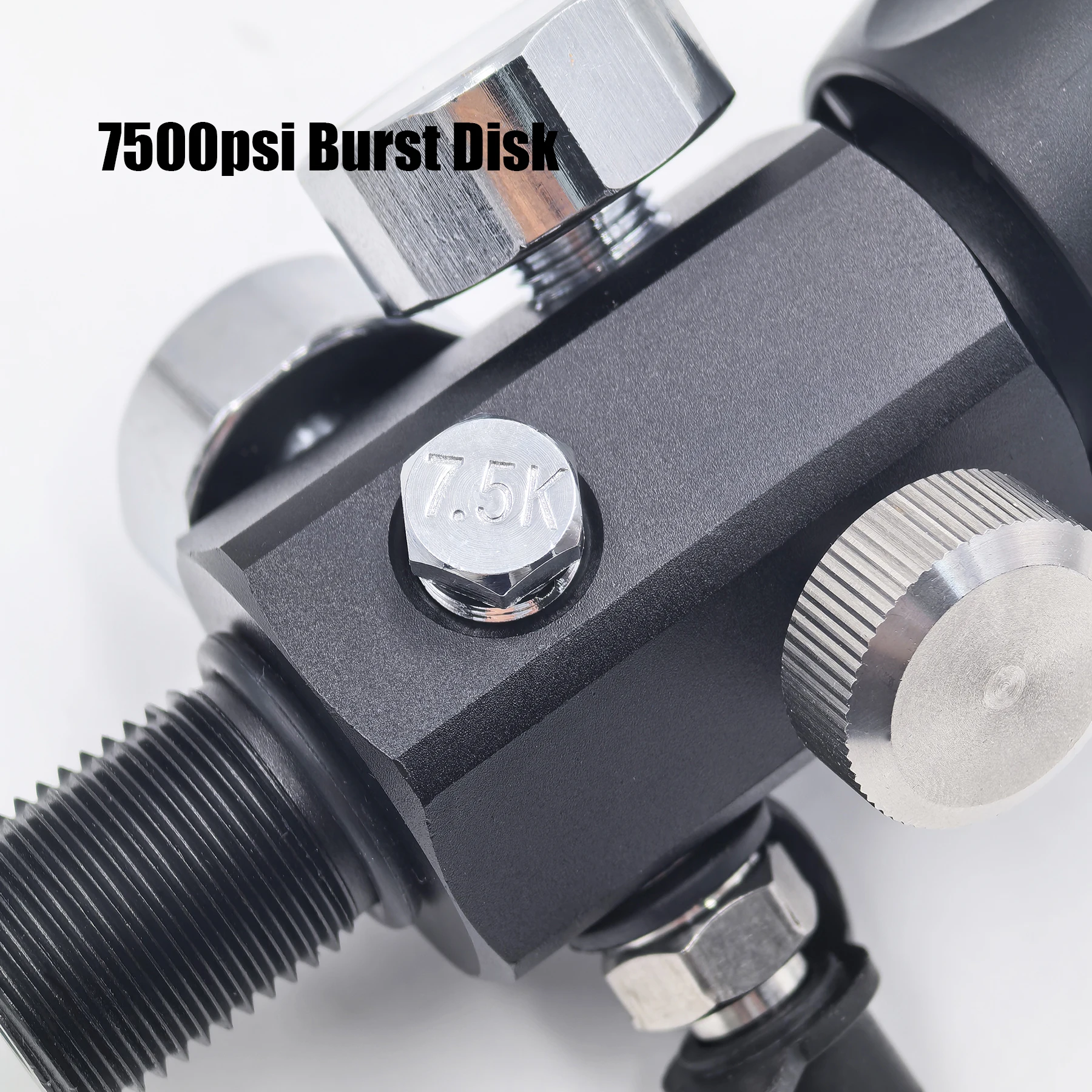

Burst disk: 7500psi/510bar

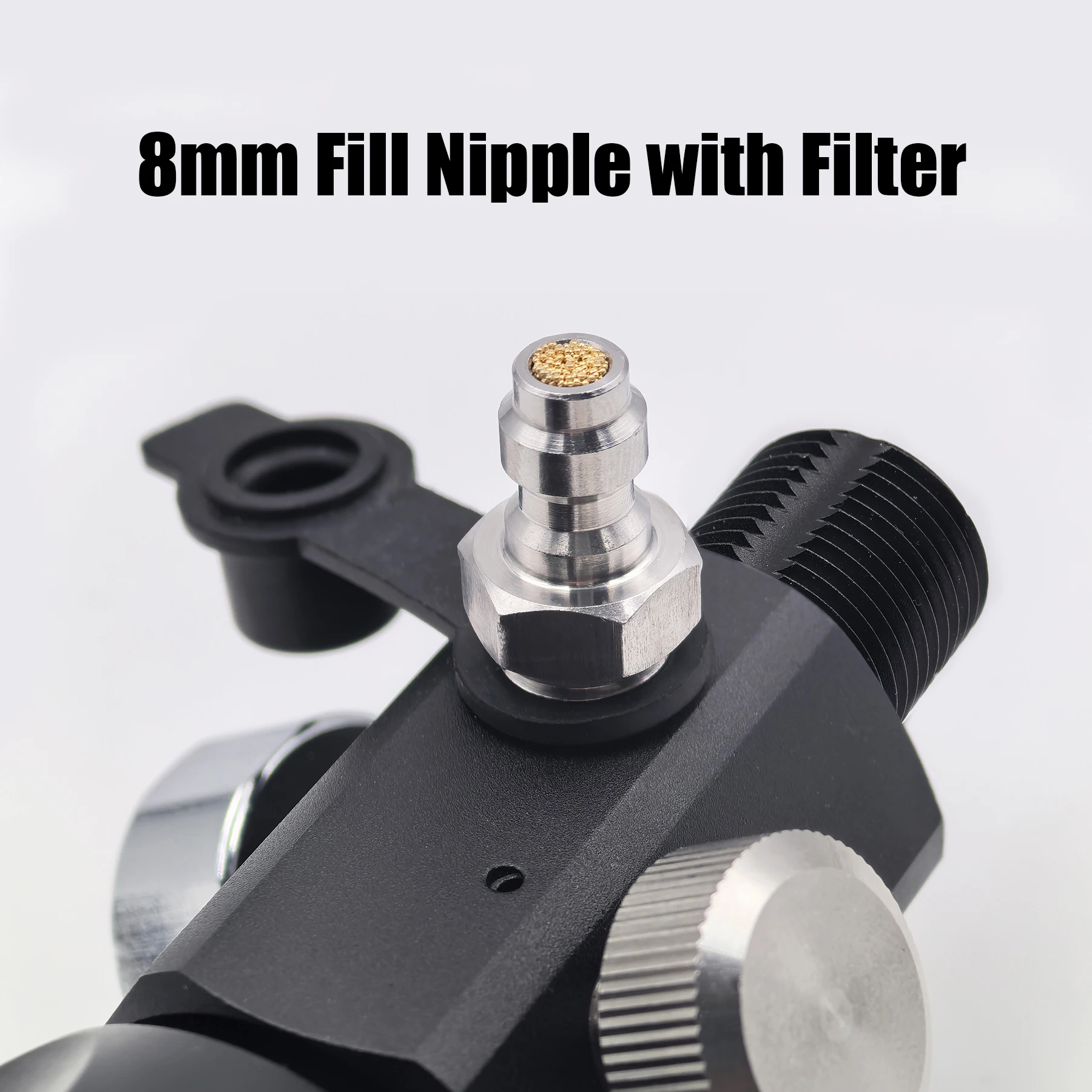

Fill Nipple: 8mm male quick disconnect with filter
